Burstfire Neck Tension Gauge Set Kit

Neck tension gauges are handy tools for reloaders who want to achieve consistent and accurate bullet seating. They allow you to measure the inside diameter of your case necks. By using neck tension gauges, you can avoid excessive or insufficient neck tension, which can affect the accuracy and performance of your ammunition.

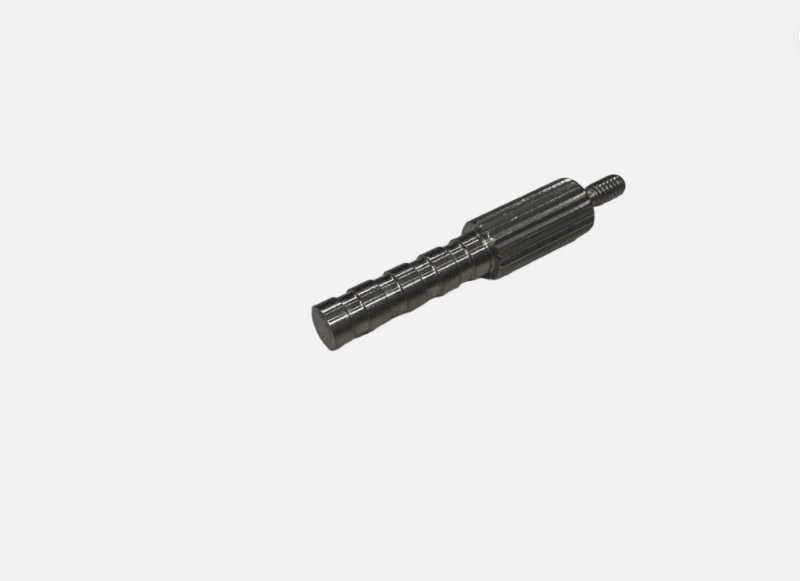

Burstfire neck tension gauges are easy to use and come in different 7 sizes to suit your reloading needs. They have 5 stepped diameters metal tool. You simply insert the tool into the neck of your sized case and slide it until one of the diameters fits snugly. If it stops at the first notch (from bottom), you have 0.001 neck tension, 2nd notch 0.002, and up to 0.005.

If you are serious about reloading and want to achieve the best possible performance from your ammunition, the Neck Tension Gauge is a must-have tool. With its precision measurement capabilities and rugged stainless steel construction, it will provide you with years of reliable service and help you to achieve the ultimate level of consistency and accuracy in your shooting experience.

Burstfire Neck Tension Gauges is a 5 Step Gauge, in 0.001 increments starting at .001 below bullet dimension. Example: .224 starts at .223 at the bottom, and up to .219. For precision loading, you typically look for 0.001 neck tension. So your case should all stop on the first notch of the gauge (from bottom). If it bottoms out, you likely don’t have enough neck tension. If you can’t insert it on top one (0.219), it means you have more than 0.005 and likely too much neck tension.

.224 Gauge – 0.219 – 0.223

.243 Gauge – 0.242 – 0.238

.264 Gauge – 0.263 – 0.259

.277 Gauge – 0.276 – 0.272

.284 Gauge – 0.283 – 0.279

.308 Gauge – 0.307 – 0.303

.338 Gauge – 0.337 – 0.333

***May have variation of 0.0003” or less
